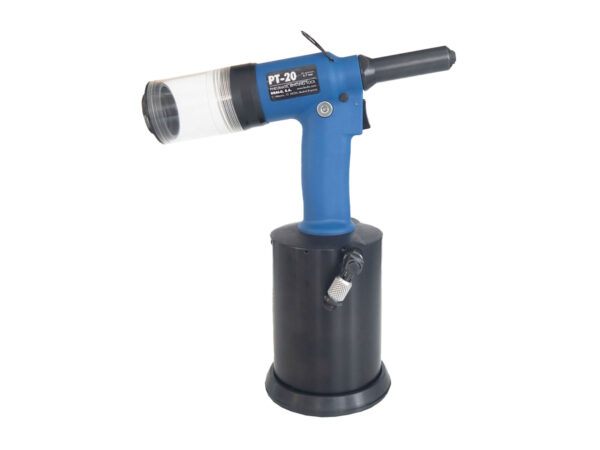

PT-20
Specialist in high-strength structural rivets
With an extended stroke and superior strength, the PT-20 is designed for a wide range of rivets, and the long 27mm stroke place Structural and Multilock rivets in one set. It operates under standard pressures and offers consistent pull even under demanding conditions.
Maximum reliability and performance in harsh industrial environments.
Lightweight, powerful, and fast tool.
Energy-efficient thanks to low air consumption.
Stronger parts, highly durable, and low maintenance.
Technical Data
- Weight: 2,300 g
- Pull force: 21,000 N
- Stroke: 27 mm
- Application range: 6.0 to 6.5 mm Structural.
- High pulling force for structural rivets.
- Long-stroke riveter, 27 mm.
- Air return system: spring-free, maintenance-free
- Forged aluminum body: lighter, stronger.
- Designed for intensive work.
- Weight: 2,300 g
- Pull force: 21,000 N

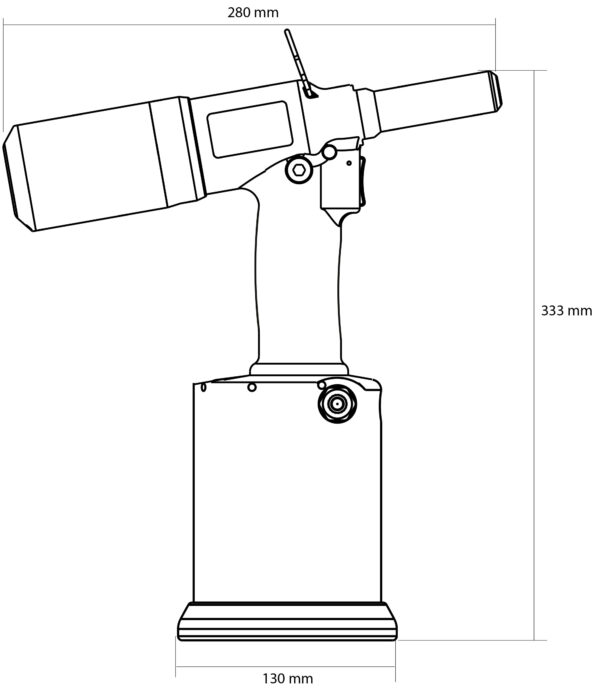

- Length: 280 mm
- Height: 333 mm
- Width: 130 mm
- Stroke: 27 mm
- Application range: 6.0 to 6.5 mm Structural
- With optional 4.8 mm, 6.4 mm Hardgrip, and 5.2 – 7.7 mm S-Trebol ( S Tri-fold or LSR) nosepieces
| RIVET Ø MM | MATERIAL | ||||
|---|---|---|---|---|---|
| ALUMINIO | STEEL | INOX | COPPER | ||
| 4,8 – 5,0 |  |
|
|
|
|
| 4,8 Hardgrip | |
|
|||
| 4,8 Structural | |
|
|
||
| 4,8 Multilock | |
|
|
||
| 6,0 |  |
|
|
|
|
| 6,4 | |
|
|
|
|
| 6,4 Hardgrip | |
|
|||
| 6,4 G-bra/ Hardlock/ Multilock | |
|
|
||
| 6,5 Structural | |
|
|
||
| 5,2 S-Trebol | |
||||
| 6,4 S-Trebol | |
||||
| 7,8 S-Trebol | |||||
*Optional parts required and supplied as accessories.
