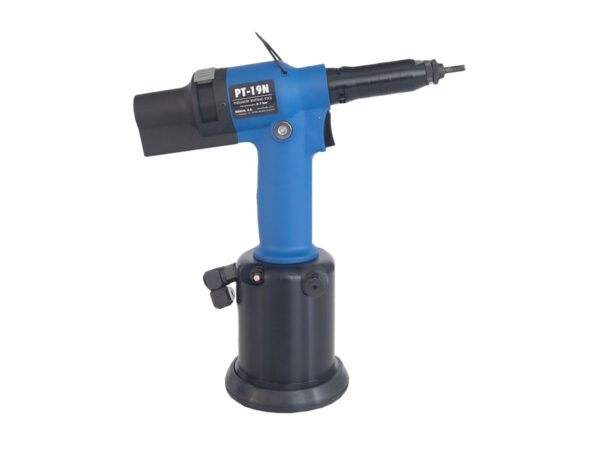

PT-19N
Total versatility for nuts from M3 to M10
The BRALO PT-19N is the most versatile tool in the range, compatible with blind rivet nuts from M3 to M10. Ideal for assembly lines with multiple formats, it allows for quick and secure adjustments thanks to its dual force and stroke adjustment system, adapting to materials of different hardness and thickness. A robust, lightweight, low-maintenance machine, it ensures extremely high reliability thanks to its simple setup.
- Increased productivity thanks to its power and speed.
- High durability and low maintenance thanks to its high-strength parts and simplified machining.
- Ergonomic, low-vibration machine for continuous use in the plant.
- Professional riveting tool that achieves high-precision riveting.
Technical Data
- Weight: 1,900 g
- Pull force: 19,000 N
- Stroke: 7 mm
- Application: It is necessary to order the desired kit of nuts from M3 to M10 in steel, stainless steel, and aluminum, blind rivet studs from M5 to M10, and UNC nuts.
- Dual adjustment of Pulling force and stroke: maximum precision and control.
- Lightweight and durable forged aluminum structure, maximizing maintenance intervals.
- Safety release button.
- Quick-change mandrel system without tools. Compatible with standard DIN 912 Class 12.9 screws.
- Weight: 1,900 g
- Pulling force: 19,000 N

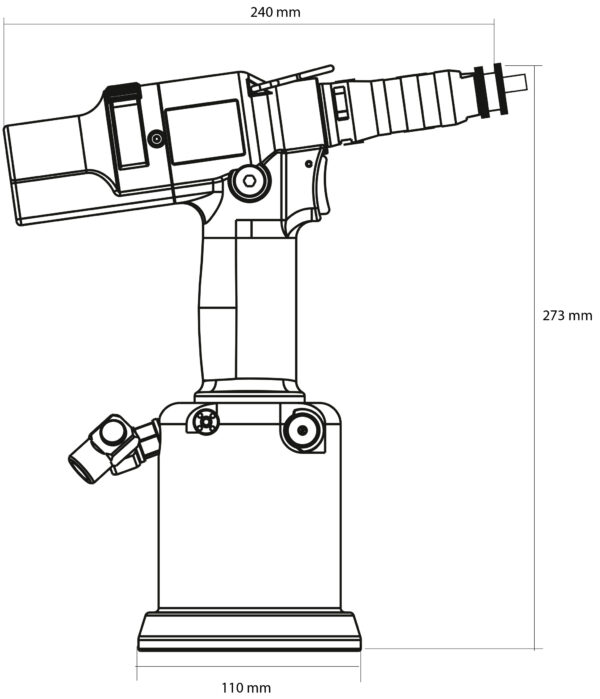

- Length: 255 mm
- Height: 273 mm
- Width: 110 mm
- Stroke: 7 mm
- Application: It is necessary to order the desired kit of nuts from M3 to M10 in steel, stainless steel, and aluminum, blind rivet studs from M5 to M10, and UNC nuts.
| RIVET NUT | MATERIAL | |||
|---|---|---|---|---|
| ALUMINIUM | STEEL | INOX | ||
| M-3 |  |
|
|
|
| M-4 | |
|
|
|
| M-5 | |
|
|
|
| M-6 | |
|
|
|
| M-8 | |
|
|
|
| M-10 | |
|
||
*Optional parts required and supplied as accessories.
| Designation | Type of Document | Download | ||
|---|---|---|---|---|
| PT-19N | Catalog sheet |  |
||
| Exploded View | |
|||
| Instruction manual | ||||
